Using Structured Data in Brim

Brim is designed to work with unstructured notes (like clinical narratives), and convert it to structured data using rules you define.

However sometimes you want to compare structured data (like lab values or medication lists) with the outputs from your notes. This article shows you how to bring in the data you already have in a structured format and evaluate it side-by-side with abstracted data from notes.

Here's a Quick Walkthrough, with more detail below:

Uploading Structured Data into Brim

There are two ways to upload structured data into Brim:

1) Upload structured data via a CSV.

• This is great for one-time projects.

2) Upload structured data with Brim's API.

• This works best for ongoing workflows.

1) Manual Upload of Structured Data

1. Click the "Add Data" button under "Project Data" in Project Setup.
2. Click "Structured Data"
3. Here you can see the required format for Structured Data under "See example format" and download an example file if you choose.
4. Click "Choose File". Select a CSV file on your computer that is formatted for structured data.
5. Click "Upload"

2) Upload Structured Data with the Brim API

1. Click the "Add Data" button under "Project Data" in Project Setup.
2. Click "Add Data via Brim API". This will connect you to the most up to date documentation on how to use the Brim API.

CSV Format for Structured Data in Brim

Below is the format of the CSV required to upload structured data into Brim. You can also find this in the tool under Project Setup > Add Data > Structured Data > See example format and download an example file there.

CSV Header (in any order):
NAME, SCOPE, TYPE, PATIENT_ID, NOTE_ID, NOTE_DATETIME, VALUE

Fields:
1) NAME: The name of the variable/data point. If there is no existing structured data element with this name, it will be created.

2) SCOPE: The scope of the variable: "Many Labels Per Note", "One Label Per Note", or "One Label Per Patient".

3) TYPE: The data type of the variable: "integer", "float", "text", "timestamp", or "boolean".

4) PATIENT_ID: The ID of the patient.

5) NOTE_ID: The ID of the note. Only needed for "One Label Per Note" and "Many Labels Per Note" variables.

6) NOTE_DATETIME: (Optional) The date/time for the note. Used to set the document date when a new document is created. Format: "YYYY-MM-DD" or "YYYY-MM-DD HH:MM:SS".

7) VALUE: The value for this combination of variable name, patient ID, and  note ID.

Example (per-patient): age,One Label Per Patient,integer,12345,,,56
Example (per-note): diagnosis,One Label Per Note,text,12345,N001,2024-01-15,Diabetes

Escape double quotation marks with double quotation marks (i.e., " becomes "").

The group of NAME, PATIENT_ID, and NOTE_ID should be unique.

Managing Structured Data Variables

Structured data fields are created as variables in Brim, with a name, scope and type. They can also be organized and ordered into Instruments if you prefer.

You can find your Structured Data Variables under Project Setup > Variables > "Structured Data". Here you can:

• Delete a structured data variable, which also deletes all of its values.
• Edit a structured data variable. Just click "Edit", and you'll be able to edit the name of your structured data variable or assign it to an Instrument.

Using Structured Data in Other Variables

You can use structured data values to direct the logic of abstraction or even whether abstracted variables get generated. To do this:

• Go to Project Setup > Variables > Edit for the Variable you want to modify.
• Scroll down to the "References" section, and click "Input Variables".
• Find the structured variable you want to reference.
• Once you've added it, you can now reference it in the variable instructions.
• You can also now use it to define the conditions under which to generate this variable.

To add a condition for generation:

• Click "Add Condition +"
• Click the first dropdown, select your structured variable
• Proceed to the other dropdowns to define the conditions under which this variable should generate.
• Click "Save Variable" when you're done.

Structured Data in Label Review and Export

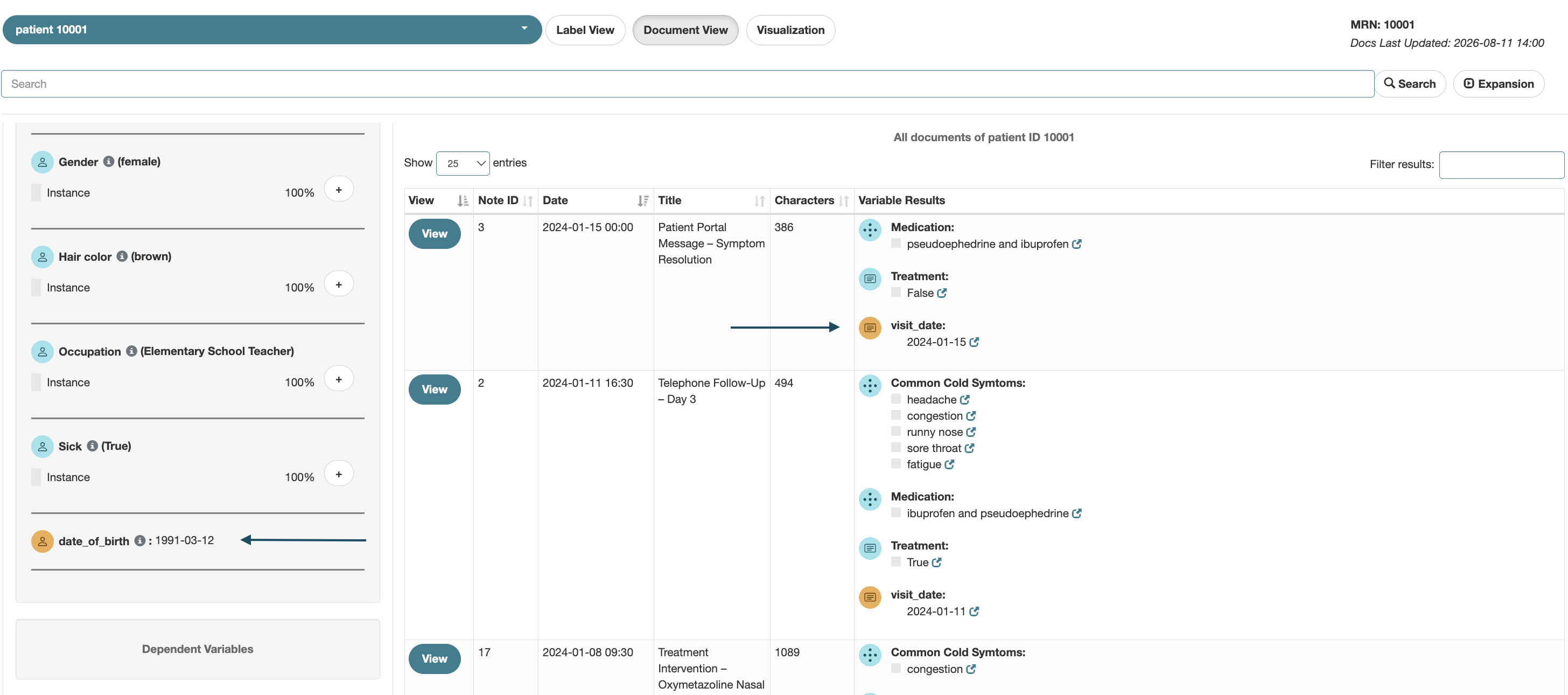

Structured data values will appear in Label Review alongside abstracted variables. This is meant to give you a full view of your dataset and patients. You can easily filter out the structured data with the "Show Structured Data Variables" checkbox at the top of label tables.

Structured data values will also be exported alongside your other data. You can prevent this by going to Export > Advanced Settings and unchecking "Include Structured Data Values".
